Safety Logic Controller
/
E°SLC204 System
/

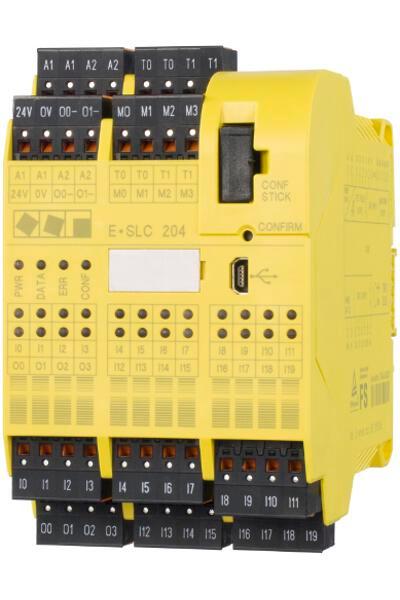

E°SLC204

E°SLC204

E°SLC204

Inputs:
  •  10 safe two channel inputs or
  •  20 single channel non-safe inputs
Outputs:
  •  4 safe two channel outputs
  •  2 ground switching outputs for the safe outputs
  •  2 test pulse outputs for cross circuit detection at the inputs
Function/ Remarks:
The Safety Logic Controller E CONTROL FBM SLC204 is a programmable safety
controller. The PC software Safeconf is used to configure the module.

The graphical
programming of the function block diagram provides boolean terms, flip-flops,
timed relais and safe function blocks for emergency stop, guard doors, safety
light curtains and two hand operations.

E°SLC204

E°SLC204

Inputs:
  •  10 safe two channel inputs or
  •  20 single channel non-safe inputs
Outputs:
  •  4 safe two channel outputs
  •  2 ground switching outputs for the safe outputs
  •  2 test pulse outputs for cross circuit detection at the inputs
Function/ Remarks:
The Safety Logic Controller E CONTROL FBM SLC204 is a programmable safety
controller. The PC software Safeconf is used to configure the module.

The graphical
programming of the function block diagram provides boolean terms, flip-flops,
timed relais and safe function blocks for emergency stop, guard doors, safety
light curtains and two hand operations.
